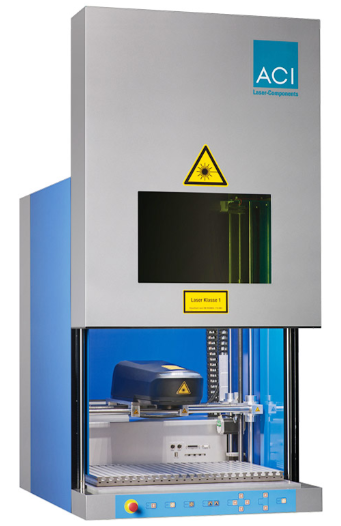

The Workstation Comfort is a versatile protective housing for machining large workpieces. It is suitable for producing one-off parts as well as for marking large batch sizes.
Properties
The Workstation Comfort can be combined with any of ACI's lasers. This means that it is suitable for working with materials such as metals, plastics, ceramics, films, glass, wood, leather, paper, and many more. Typically, this system is used for medium- to large-scale production. The Workstation Comfort is a laser safety class 1 solution and does not require any additional safety devices. This makes it an attractive alternative to conventional marking technologies, even for small companies.
The capacious interior is very easy to access and has a large T-slot table. This table has a mounting surface of 600 x 400 mm and can be loaded with parts up to a weight of 75 kg. A Z-axis enables the laser to travel 100 mm and allows parts with heights of up to 140 mm to be machined. In manual mode, the integrated focus finders help the user to find the correct Z-axis position in no time at all.
Software
The laser system is controlled using our proprietary Magic Mark marking software. This software enables workpieces to be marked with text, graphics, codes (data matrix codes, barcodes), serial numbers and logos. It can also be used to achieve uniform markings around the perimeter of workpieces with rotational symmetry. An intelligent user privilege management system facilitates the creation of different user groups. This way, the laser system can be adjusted to cater for the user's specific requirements. When using the laser system in automated production lines, fully automated operation – including data exchange with various data sources – can be achieved without any difficulties. Optionally, plugins such as the code or script module can be used to add extra functions to the Magic Mark software.
