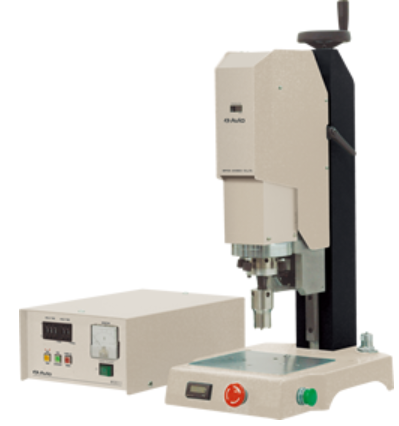

Máy hàn siêu âm loại nhỏ - Small Class Ultrasonic Welder

Máy hàn siêu âm loại nhỏ - Small Class Ultrasonic Welder

Liên hệ

Mã sản phẩm: W3011/W3012/W3013/W3014/W3015 Tình trạng: Hết hàng

Mô tả
Đánh giá

Ideal for Welding and Staking of Small Sized Parts

Output Power/Frequency Range: 500 W to 800 W; 20 kHz to 40 kHz

Items		W3011	W3012	W3013	W3014	W3015
Output Power		500W		800W	500W
Frequency		20kHz, 27kHz, 39kHz,		27kHz, 39kHz	20kHz, 27kHz	27kHz, 39kHz
Power Source		AC100V ±5% 50/60Hz			AC200V 1Φ	AC100V ±5% 50/60Hz
Oscillation Method		Automatic Tuning Hold Master Oscillator System
Generator	Amplitude Adjustment	*1	50 - 100% (5steps)	*1	0 - 100% (Continuously)
Generator	Dimension / Weight	W254 x D365 x H146mm Approx. 6kg			W254 x D415 x H146mm Approx. 7kg
Welder Unit	Pressure Method	Air Cylinder
	Maximum Pressure	250N
	Compressed Air Supply Required	Clean Air (0.06 - 0.5MPa)
	Horn Stroke	75mm (Φ25mm Air Cylinder)
	Dimension / Weight	W320 x D380 x H710mm Approx. 30 kg

*1 Continuous adjustment function of the amplitude between 70-100% is available by mounting optional variable transformer externally.
