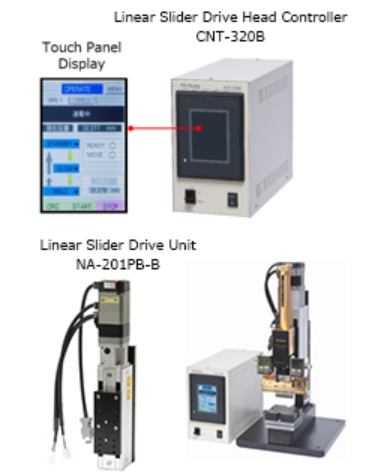

Linear Slider Drive Head Controller & Linear Slider Drive Unit
- Motor drive with 1μm resolution supports precise welding
- It equips with a pressure stability function to keep the pressure stable and to improve the quality of welding
- It reduces pressure damage by using a position control function during welding
- It reduces heat damage by using high pressure/low temperature welding processes with a max. 300 N force (When NA-202PB-B is used)
- It provides intuitive operation by color touch panel and lever jog switch
- Soft-landing process with a slow moving speed of 0.1mm/sec is provided
- Seven operation conditions can be saved.
Items |
CNT-320B & NA-201PB-B |
CNT-320B & NA-202PB-B |
Applicable Reflow Head |
NA-111,NA-112,NA-151,NA-152,NA-153 |
NA-154 |
Pressure |
MAX 150N |
MAX 300N |
Drive Method |
Linear Slider |
Stroke |
MAX 50mm |
Motor Resolution |
1μm |
Power Source (CNT-320B) |
DC24V ±5% 4A
(Option: AC Adapter AC100 - 240V) |
Dimension / Weight |
CNT-320B:W120 x D315.9 x H207mm ≒ 3.7kg |
NA-201PB-B:W57.5 x D82.5 x H311.2mm ≒ 2.0kg |
NA-202PB-B:W74 x D103.5 x H368.6mm ≒ 4.5kg |
